Whats New in VertiGIS FM in version 10.3

VertiGIS FM will be released on 27 February 2024 with version 10.3 - with new functions and improvements. A complete list of all changes can be found in the changelog at https://changelogs.vertigis.com/. Here is an overview of the most important new features:

Platform

Change to the system requirements

Either Microsoft Edge or the latest version of Google Chrome must be installed on the application server.

Web API

A new web API is available for data exchange between third-party systems and the FM database. It can be called via ([BaseUrl]/UniversalWebApi/apidoc). Available services are

• Create, retrieve, change invoice
• Create, retrieve, change cost centre
• Create, retrieve, change contact

Documentation in English is available in the manual: Web API

Queries

Queries can be changed and saved again.
Open queries have an additional "Save changes" button. If the button is clicked, previously changed search settings as well as the name, report output and display options can be updated. Standard queries cannot be edited.

Web App

When recording defects in the web app, photos can be captured and uploaded directly.

Maintenance

Checklists for components

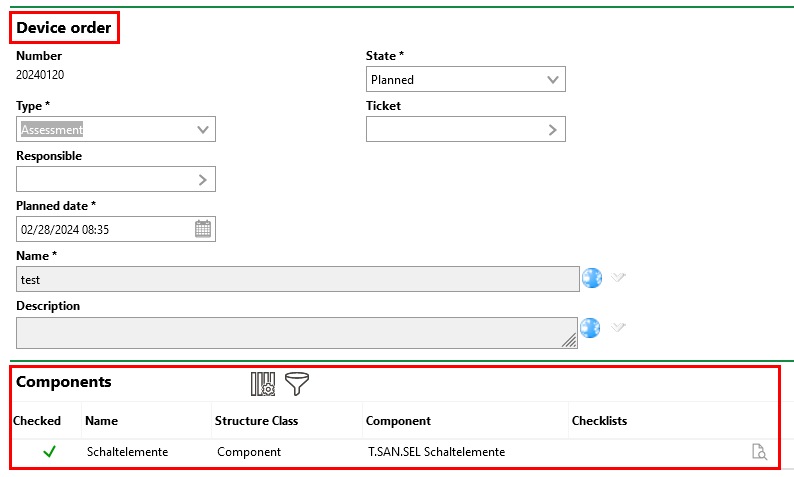

In the course of an order on the appliance, the checklists of the subordinate (currently installed) components can be processed in a separate section.

Operating counters

Measurements (of dimensions) and operating counter readings can be recorded on checklists.

New measurements are defined via the "Operating counter / Record measurement" workflow on the maintenance start page. All measurements already defined on groups are listed there. It is possible to assign a measurement to several execution groups. This means that frequently used measurements only need to be defined once.

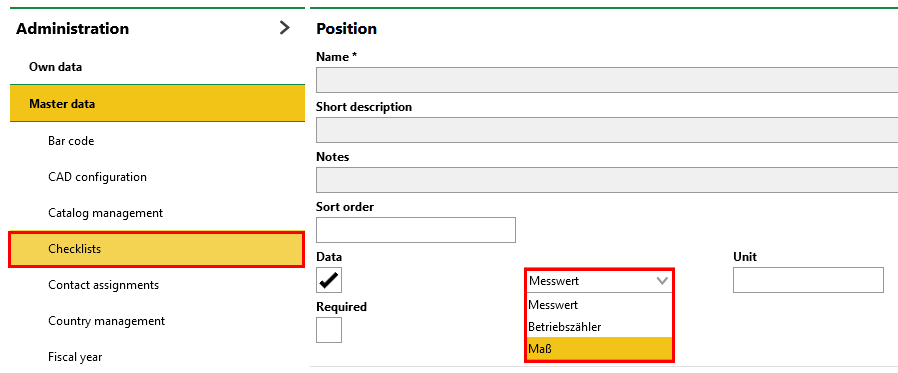

When configuring checklist items, there are three options when ticking "Measured value":

• Use the measured value as before
• Selection of a measurement to be measured during checklist processing
• Selection of an operating counter that is to be read during checklist processing

Flexible properties

Flexible properties can be displayed in multiple columns.
Up to four columns can be used when defining or importing flexible properties. Column 1 and column 2 correspond to the former left and right form positions. There is a new yes/no field "Heading" for headings. Inventory data is retained and does not change.
