How to Create Single, Grid, or Line‑based Prints from Feature Selections, Query Results, or Identify Results

Introduction

You can now create single, grid, or line-based prints in VertiGIS Studio Web by selecting multiple features and applying a predefined layout. Each feature generates its own output, enabling efficient batch printing directly from the web application.

This functionality is available starting with Studio Web version 5.41.1 (April 15, 2026)

Configuration

1. Activate the Required Print Modes

In the VertiGIS Studio Web Designer, enable the appropriate printing modes in the printing component according to the geometry types for which printing should be available:

• Line Geometries - Enable Line Print
• Point and Polygon geometries - Enable Grid Print

2. Enable Print Result Action on Layers

In the VertiGIS Studio Web Designer go to the following settings:

1. Navigate to the Map > Layer Extensions
2. Edit the Layer Extension for each relevant layer and add the command "Print" to the Result Actions

How to Use

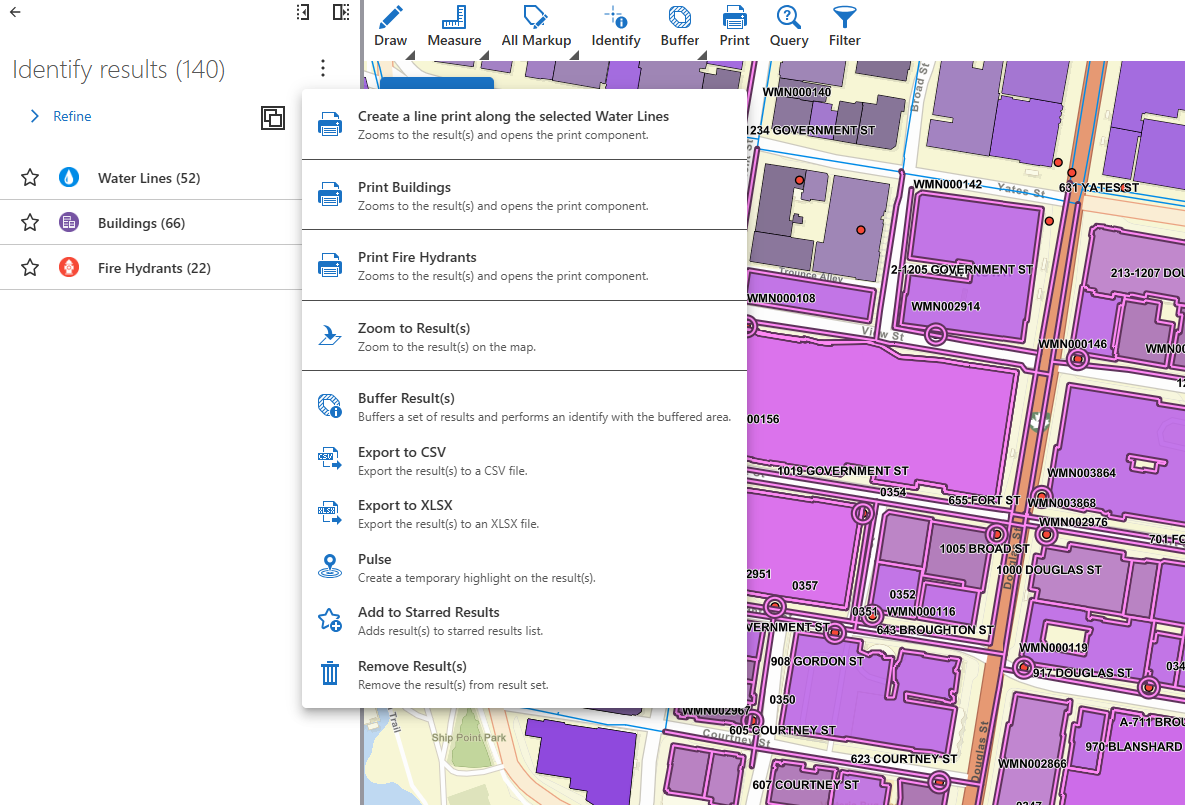

In VertiGIS Studio Web, use the search functionality or the identify tool to select features. Then, locate the configured Print action in the Results List or Result Details. Choose the desired layout and scale, and click Preview. Once everything is set up, click Print to generate the final output.

An example application is provided in the attachment of this article. In this sample, the Print action has been configured on the following layers:

• Fire Hydrant
• Water Lines
• Buildings

To explore the app and its configuration:

1. Create a blank Studio Web App
2. Save the application
3. Upload the provided ZIP file

Once uploaded, you can review how the print actions and settings are configured on each layer.
