Auto-Naming with Global Sequences in ConnectMaster 7.03

Overview

In previous versions of ConnectMaster (7.0 and earlier), Auto-Naming relied on fixed numbering methods such as [N]. While this worked for basic use cases, it limited flexibility and consistency across projects.

Starting from version 7.03.0225  ConnectMaster introduces a Global Sequence method for Auto-Naming. This enhancement allows you to define and reuse global sequences across different naming rules, ensuring consistent and controlled numbering throughout your environment.

Key Benefits of the New Method

• Consistent Numbering: Use the same sequence across multiple Auto-Naming definitions.

• Customizable Sequences: Define your own sequence identifiers such as [SEQ-X1], [SEQ-CAB], etc.

• Oracle Sequence Integration: Each sequence is backed by an Oracle sequence, created automatically on first use.

• Transparency: A new dialog button shows all active sequences and their current values.

• Control: Reset any sequence to a new starting value when required.

• Flexibility: Available for Locations, Components, Physical Paths, Test Cases, Events, and Projects.

How It Works

• Instead of using [N], you can now insert [SEQ-<name>] in your Auto-Naming rule.

• Example: [SEQ-X1] will start numbering from 1 and increment automatically.

• The same sequence identifier (e.g., X1) can be reused in multiple Auto-Naming definitions.

• Sequences are maintained globally in the database, ensuring uniqueness and consistency.

Steps to Configure Global Sequences

1. Navigate to the Component Category

   • Go to:
     File → Library → Components → Categories → Sub-Category

2. Select the Desired Sub-Category

   • Choose the specific sub-category item you want to configure.

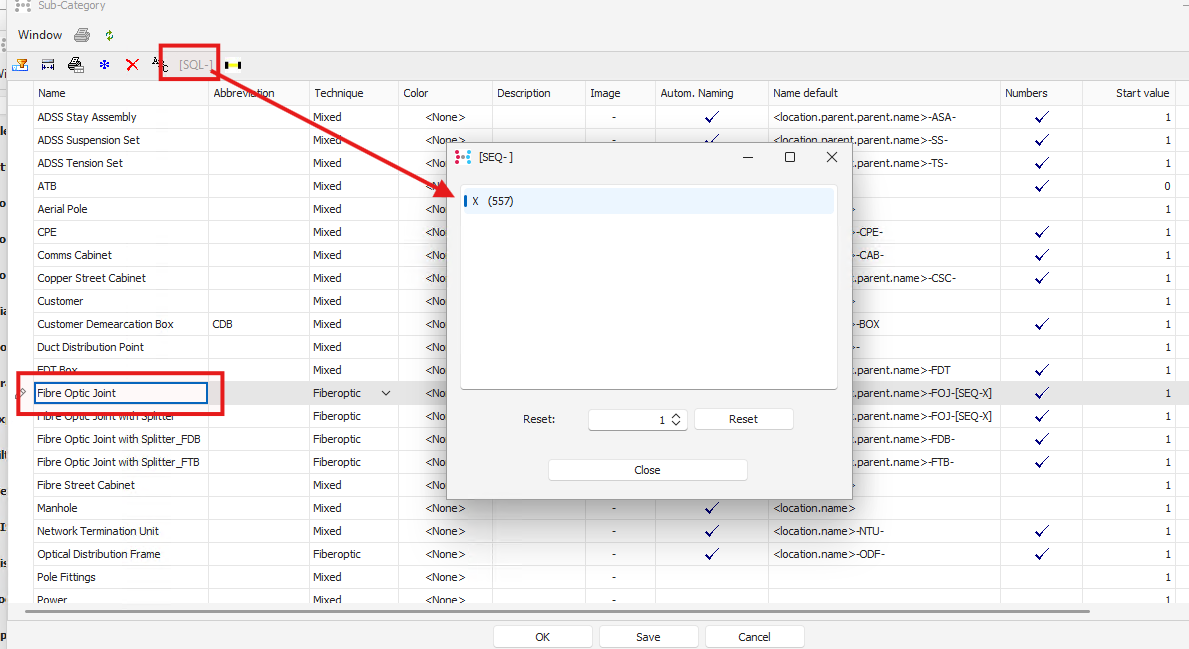

3. Open the Auto-Naming Dialog

   • Click on the [SQL-] button.
