Black Terminal in Detail Scheme

Problem

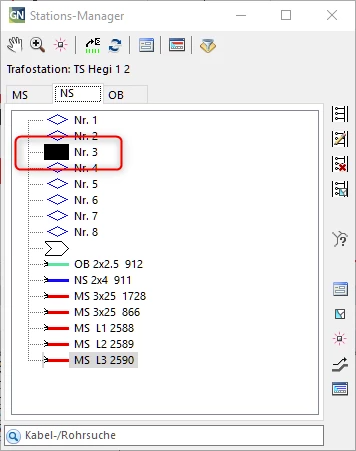

A terminal is shown with a black area in the detail scheme.

Cause

The entry for the voltage is missing in the data for the corresponding terminal.

Solution

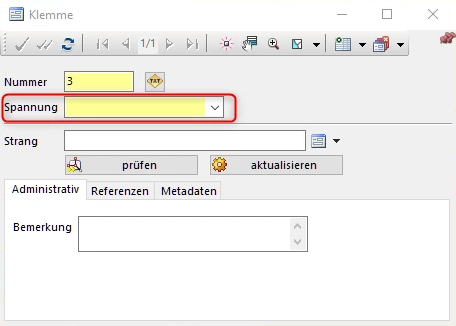

Open the attribute editor of the affected terminal from the station manager and fill in the voltage field.
