Automatic labeling of UT features (with annotations)

A newly created UT feature (net/route point, line, route axis) whose feature class has the
carries the UT tag CS_CREATE_ANNO, is automatically annotated.

In this case, annotations are automatically created during feature creation for all annotation classes associated with this feature class that satisfy the definition query.

If individual annotation classes are to be excluded from this automatic labeling, the value NO_CS_CREATE_ANNO must be entered for them in the UTAnnotationClass field in the annotation feature class properties.

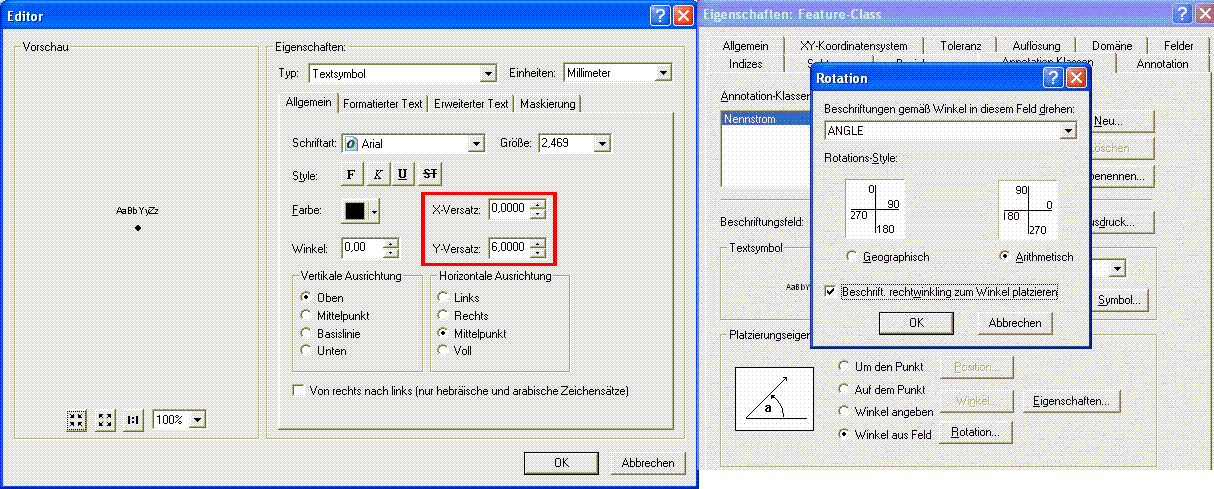

During automatic creation, the symbol parameters X Offset, Y Offset and, if necessary, the Rotation Angle must be set to ensure correct positioning:
