How to install Oracle 19c client for ConnectMaster manually

Updated



This article describes the manual installation for the Oracle 19c database client for use with ConnectMaster.



Installation

Note:

Extraction of the software ZIP files and installation should NOT be run from a network path. Copy them to a local path beforehand!



Important:

Make sure you unpack the installation files to a short, local path that does NOT contain spaces!

e.g.: C:\temp\CM702_ora19c_x64_0205.1



Before extraction make sure the zip files are unblocked in the files properties.



In the ConnectMaster installation package you find the Oracle 19c client install package.

  • Open the Windows command line (cmd.exe) with administrator rights
  • Change to the directory containing the setup.exe for the Oracle client. e.g.:
cd C:\temp\CM702_ora19c_x64_0205.1\oracle19c\client
  • Run setup.exe with the following arguments
setup.exe "ORACLE_HOME_NAME=OraClient19c_ConnectMaster"

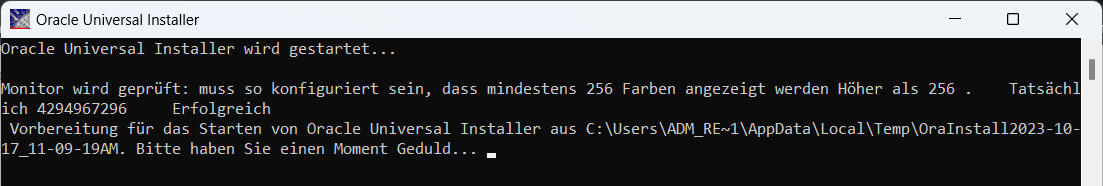

An "Oracle Universal Installer" window will shortly pop up. Then the main Oracle Client installation program will start.



  • Choose custom installation



As the installation directory we suggest the following:

  • Oracle Base: “C:\cm\oracle
  • Software Directory: “C:\cm\oracle\product\19.0.0\client_1”



  • Additional components to install:
    • Oracle Database Utilities
    • SQL*Plus
    • Oracle Net
    • Oracle ODBC Driver
    • Oracle Data Provider for .NET
  • Finish the installation process.
  • In the Oracle software directory under ../network/admin (e.g. C:\cm\oracle\product\19.0.0\client_1\network\admin ) if the file "tnsnames.ora" does not exist yet, create a text file with this name.
  • Edit it to configure the connection properties to your desired destination database ( TNSNAMES.ORA File – The Complete Guide - databasestar.com )



Register the Oracle DataAccess.dll

  • Open the Windows command line (cmd.exe) with administrator rights
  • Change to the ConnectMaster assemblies directory. e.g.
    cd C:\cm\cm675\assemblies
  • Register the dll using the following command. Make sure the software directory matches the one you configured above. e.g.:
    gacutil.exe -i "C:\cm\oracle\product\19.0.0\client_1\odp.net\bin\4\Oracle.DataAccess.dll"

You should see "Assembly successfully added to the cache"
