Map Theme

Permanently deleted user

31 Mars 2016 15:19

Is it possible to make the viewer zoom to a custom bookmark as you change the Map Themes. For instance I have a map themes for several states and each map theme only shows that states data. I would like the viewer to zoom to a bookmark when its them is selected.

0

•

  Permanently deleted user

  31 Mars 2016 15:53

  I did this exact thing on a trails site with a simple workflow. Here's the URL to the site (http://maps.rdos.bc.ca/Html5Viewer/?viewer=rdostrails) so you can see the behaviour (if you choose Challenge Triathlon Bike Course from the "Choose a Map Theme" menu it'll zoom to the extent of the race course - I set the I want to menu up to allow quick user access to the layer themes).

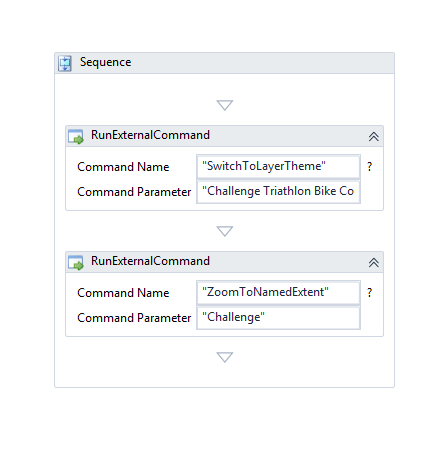

  I attached a screen shot showing the workflow. The site has existing bookmarks (i.e. named extents) and layer themes (obviously) that I use for the command parameters.



  I hope this helps!









  0
