Remove Toolbar Button from Handheld

Permanently deleted user

08 April 2016 18:56

I am working in Essentials 4.5 and HTML5 2.6 and was wondering if there is anyway to completely remove the toolbar button for a handheld device. In Manager, I've removed both the tabbed and compact toolbar, but the button still appears in the top right corner next to the Search  box. Is there something I need to edit in the Handheld.json file?

0

•

  Permanently deleted user

  08 April 2016 19:33

  Hi Lisa,



  To remove the Toolbar button from the handheld view, look in the viewer's handheld.json.js file for the "viewModelId": "CompactToolbarViewModel", This will give a couple results but look for the json object like the following:



    , { "id": "CompactToolbarButtonView", "viewModelId": "CompactToolbarViewModel", "visible": true, "region": "HeaderRegion", "type": "geocortex.essentialsHtmlViewer.mapping.modules.toolbar.ToolbarButtonView", "markup": "Mapping/modules/Toolbar/ToolbarButtonView.html" }

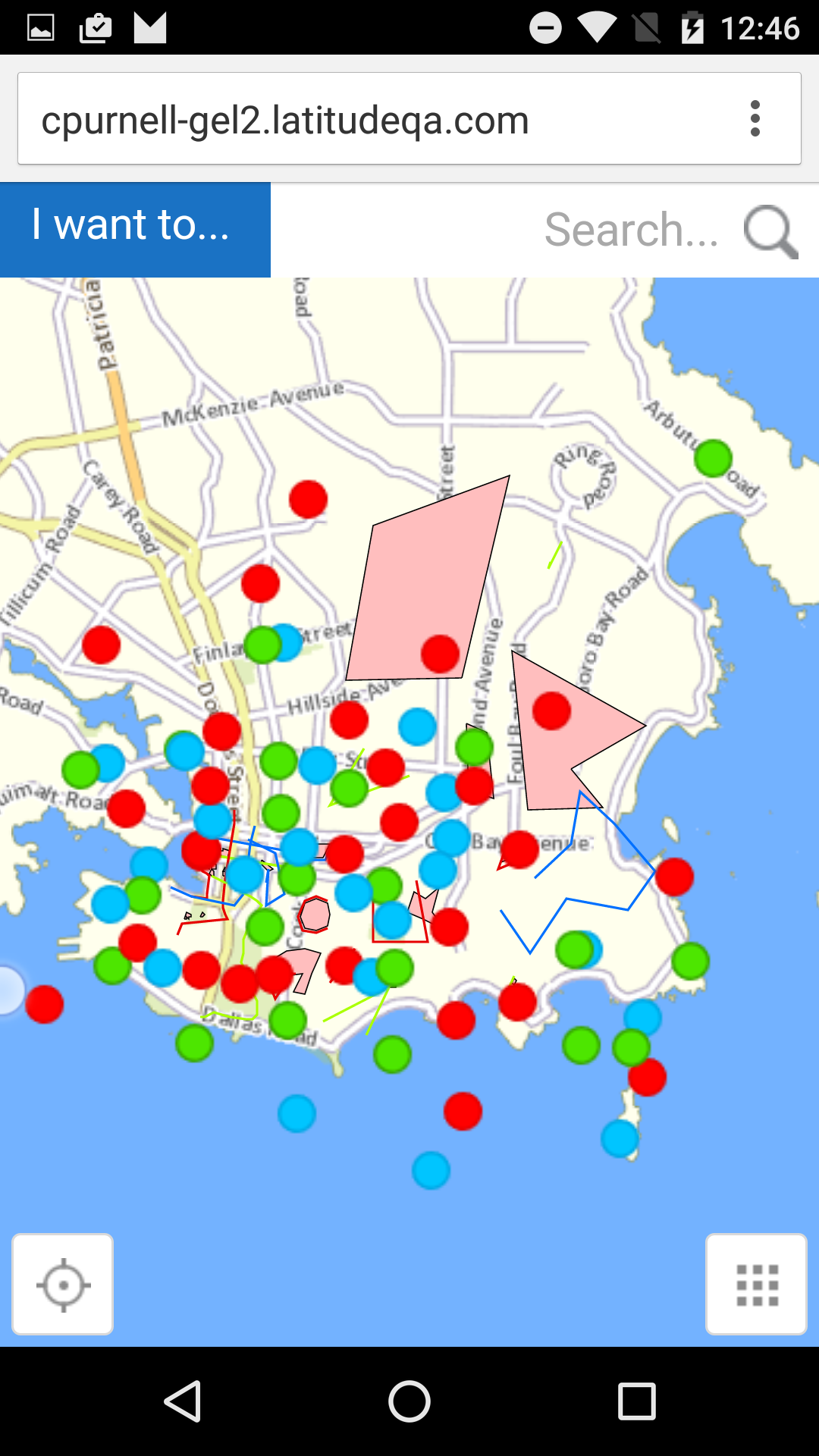

  If you remove this from the handheld.json.js file the toolbar button at the top-right of the viewer will now be gone. Unfortunately now there is some white space where the toolbar used to be.  I am not entirely sure how to get rid of that whitespace at the moment, but I will check with out graphics team and they may have a solution.



  I will reply back if/when I find a solution for the white space.

  Cory Purnell



  Latitude Geographics Quality Assurance Team

  0
•

  Permanently deleted user

  08 April 2016 19:48

  Hi Lisa,

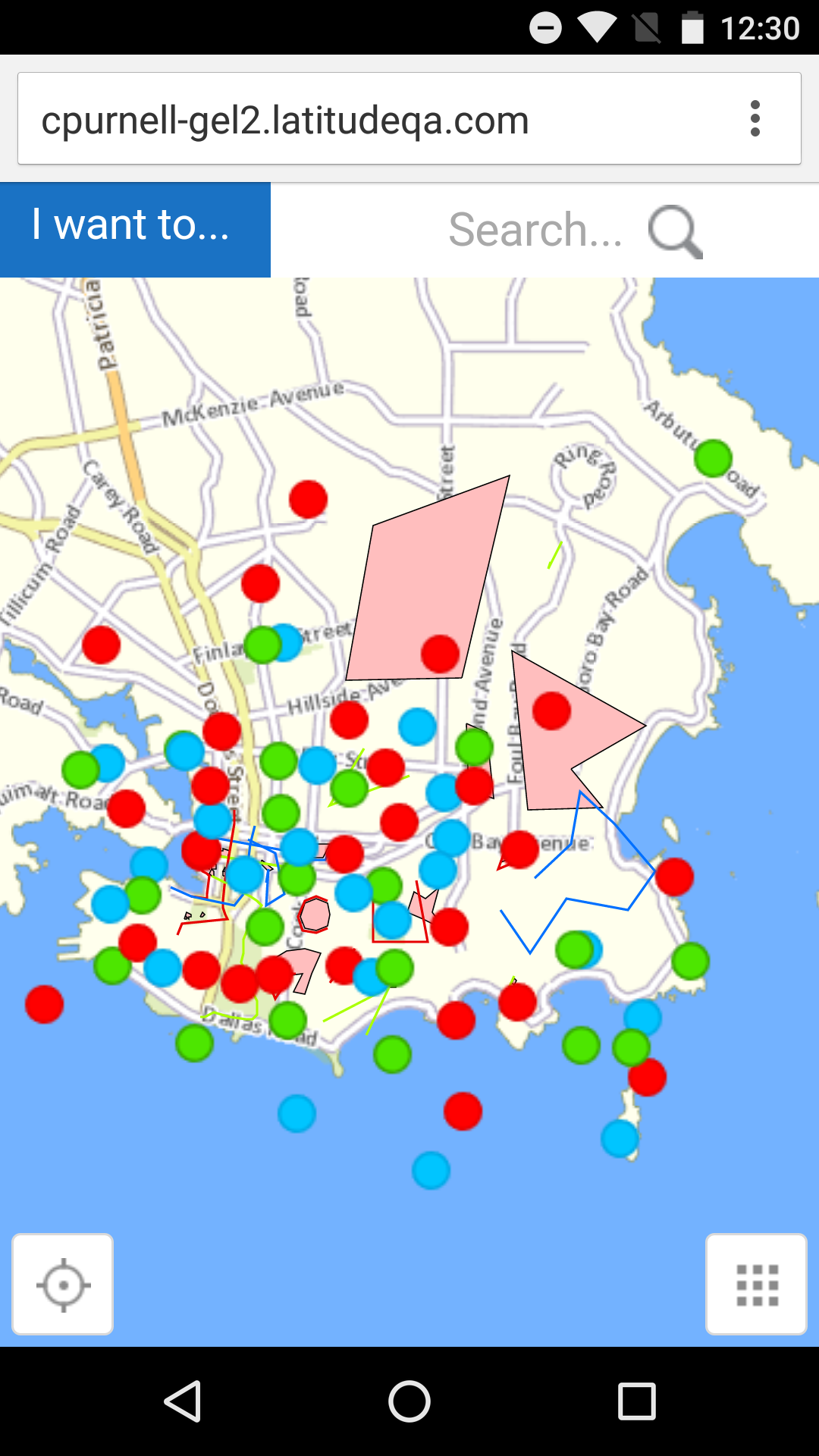

  I found that if you place the following in the viewer's custom handheld.css file (located here: C:\Program Files (x86)\Latitude Geographics\Geocortex Essentials\Default\REST Elements\Sites\<site_name>\Viewers\<viewer_name>\VirtualDirectory\Resources\Styles\Custom\Handheld.css) the search icon should be pushed all the way over to cover that blank space:

  .shell-small .region.header-region .view.SearchView { right: 0;





  Let me know how this works out, and if you have any questions!

  Cory Purnell



  Latitude Geographics Quality Assurance Team

  0
•

  Permanently deleted user

  11 April 2016 18:33

  Thank you so much Cory, that did the trick!

  0
