Annotation halos

Permanently deleted user

13 Juli 2016 15:42

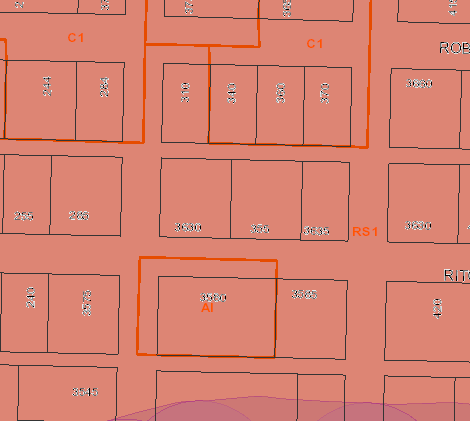

Is there any way to control the halos around annotation features? There is no halo applied in the mxd yet these house numbers are virtually illegible unless the user zooms in really close. If there's no polygon features displaying under it it's fine but our users need to be able to look at a map with polygon features turned on AND read addresses. The attached map image has a scale of around 1:2,200 which should be plenty close enough for reading annotation features. GVH 2.6.1, GE 4.5.1



0

•

  Dan Giersz

  13 Juli 2016 15:47

  That looks like an aliasing problem. Try changing the text anti-aliasing setting of your service to Force (this will negatively affect performance, but it's hard to say how much).

  0
•

  Permanently deleted user

  13 Juli 2016 15:56

  I just checked. It's already set to force.

  0
•

  Permanently deleted user

  13 Juli 2016 16:07

  So why not use halos?  I use them on all labels, since you don't know what the user will select to have underneath, and any single color will look bad with some backgrounds...  The only issue is to make sure that you set the halo color to something that is not pure white, since that is turned to invisible.  I would try something like 250,250,250 - looks white abd stays around.  Sometimes if my labels are something other than black, I would use a similar but lighter shade of the label (Red label, Pink halo).

  0
•

  Permanently deleted user

  13 Juli 2016 16:08

  Interestingly, the image format for the map service (under display settings in manager) wasn't set so I changed to png32 and voila! I was also able to change the text anti aliasing property back to normal.



  _img_ alt="User-added image" src="https://latitudegeo--c.na53.content.force.com/servlet/rtaImage?eid=90760000000Xcai&feoid=Body&refid=0EM60000000Xw5P" _/_img_

  0
•

  Dan Giersz

  13 Juli 2016 16:17

  Image format was my next suggestion, but you beat me to it!



  We typically set it to PNG32 for all our 'important' services right off the bat.





  0
•

  Permanently deleted user

  13 Juli 2016 16:52

  I might try playing with halos, Mike. These won't display over top of orthos very well but I'm happy they're at least legible now! I may end up with 2 different map layers so users can choose halos or not depending on what it is they need to display on the map. Thanks for the suggestion!

  0
•

  Permanently deleted user

  13 Juli 2016 18:09

  There is probably a performance hit for halos, but shouldn't be noticeable for smaller targeted sites. If you use halos, they will work for all, and you will just need the one layer. Take a look...



  https://maps.srcity.org/Html5Viewer/Index.html?viewer=Parcel
