Is is possible through a layers Visualization Options to make a polygon have an outline and no fill?

Aaron Nepple

27 Oktober 2016 18:09

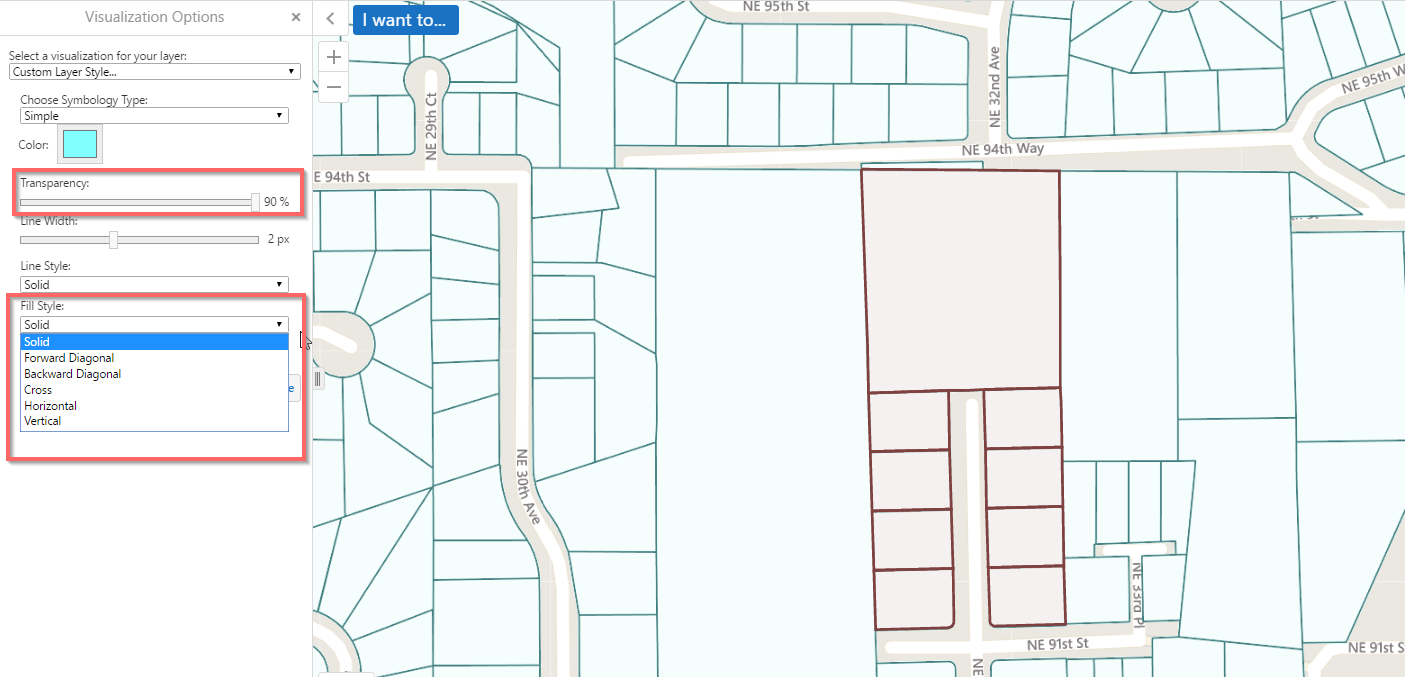

I am wondering if I can customize a layer with polygons to show an outline, but not a fill color. When I go into the Visualization Options section (HTML Viewer 2.7) I can almost get there by adjusting the transparency, but it caps out at 90%, and there is no option for "none" in Fill Style that I can find.





I realize I can publish the layer with this symbology, but users may need to customize things on the fly.



Thank you for your help.



-Aaron

0

•

  Yona Bystedt

  27 Oktober 2016 20:12

  Hi,



  You can configure 100% transparency as an option here. Open the relevant configuration file (eg: desktop.json.js) and look for the "widgets" section (it's near the bottom).



  Here you should see configuration for a widget called "SymbologySettings". In here is the configuration for the transparency control:



    "transparency": { "min": 0, "max": 100, "value": 10, "step": 5 }, Just change the "max" value from 90 to 100 and you should be good to go.





  0
•

  Aaron Nepple

  27 Oktober 2016 21:01

  Jonathan,



  Thank you for the prompt reply. That did the trick for me!







  Aaron

  0
•

  Chris Roberts

  27 Oktober 2016 22:38

  Hi Aaron



  Under the same widget for "fillstyles" I added a "none" style as below.  This seems to work well for me, and gives the user a No Fill style option.



   "fillStyles": [



              {



                "style": "solid",



                "label": "@language-symbology-settings-fill-style-solid"



              },



              {



                "style": "forwarddiagonal",



                "label": "@language-symbology-settings-fill-style-forward-diagonal"



              },



              {



                "style": "backwarddiagonal",



                "label": "@language-symbology-settings-fill-style-backward-diagonal"



              },



              {



                "style": "cross",



                "label": "@language-symbology-settings-fill-style-cross"



              },



              {



                "style": "horizontal",



                "label": "@language-symbology-settings-fill-style-horizontal"



              },



              {



                "style": "vertical",



                "label": "@language-symbology-settings-fill-style-vertical"



              },



              {



                "style": "none",



                "label": "None"



              }



            ]



  Cheers



  Chris
