highlight module - 2.8

Permanently deleted user

11 Maj 2017 21:56

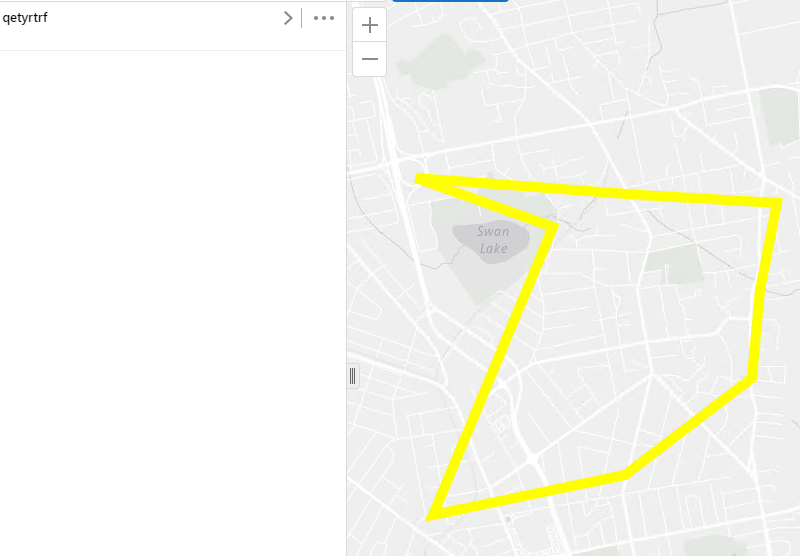

I'm trying to make highlighted polygons appear with a thick yellow border and transparent fill. I've made these changes to the highlight module and the colours are right but the borderWidth property doesn't seem to change no matter what value I use. The border itself also doesn't appear as a solid line. It looks like two lines with a small gap. Any advice would be appreciated.



  "moduleName": "Highlight",



        "moduleType": "geocortex.essentialsHtmlViewer.mapping.modules.Highlight.HighlightModule",



        "configuration": {



          "fillColor": "RGBA(0,0,0,0)",



          "borderColor": "RGBA(255,255,0,1)",



          "borderWidth": 10,



          "outerBorderColor": "RGBA(255,255,0,1)",



          "focusedFillColor": "RGBA(0,0,0,0)",



          "focusedBorderColor": "RGBA(255,255,0,1)",



          "focusedOuterBorderColor": "RGBA(255,255,0,1)",



          "outerBorderWidth": 10,



          "highlightLineOpacity": 1,



          "maxHighlightableGeometryVertices": 5000,



          "geometryGeneralization": {



            "geometryGeneralizationEnabled": true,



            "thresholdVertices": 5000,



            "maxDeviationInMeters": 250



_img_ alt="User-added image" src="https://latitudegeo--c.na53.content.force.com/servlet/rtaImage?eid=90660000000Gu07&feoid=Body&refid=0EM60000000UjdC" _/_img_

0

•

  Pairin Mason

  11 Maj 2017 22:49

  Hi Rebecca,



  You configuration looks good and it works as you described on my end.







  Is it possible for you to try clearing browser cache to make sure that the viewer is loading the correct config file?



  Please feel free to let us know if the issue still persist for you.



  Cheers,



  Pairin



  0
•

  Permanently deleted user

  12 Maj 2017 15:28

  Hmmm, I cleared the cache and but I'm still not getting the expected result. Any other suggestions?



  I'm also not getting notified when someone comments on my post so I'll check back later today.

  0
•

  Permanently deleted user

  12 Maj 2017 20:39

  Hi Rebecca,



  I just tried on your site (using the credentials that you supplied in your open case), and it looks as you'd expect it to.  I suspect this is a client side issue.  Can you please test again?  If you're still having trouble, we can take a look on a call next week.



  Thanks!



  Danny

  0
