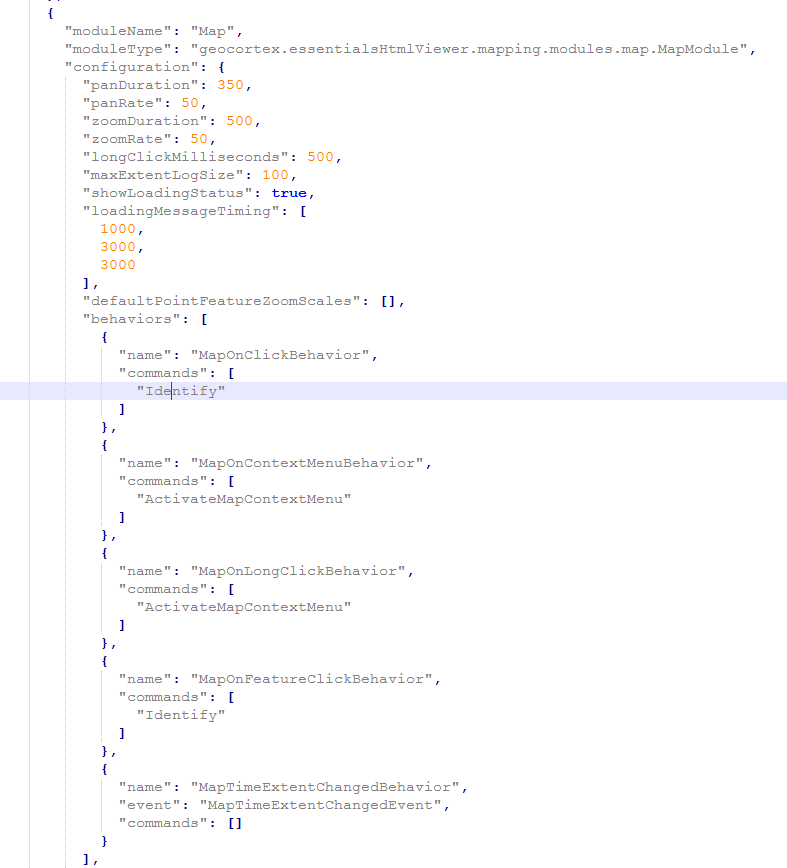

I am trying to switch out the MapOnClickBehavior from "InvokeMapTip" to "Identify."  When I try to make this change in the appropriate json config file (in this case the Desktop.json.js file), the change I make (see below) does nothing.  Can someone tell me how to make Idenify the default behavior for a map click (and/or feature click) event?





Notice that I also made the same change for the MapOnFeatureClickBehavior, but that also did nothing.



Any tips?



Thanks beforehand!

0

•

  Permanently deleted user

  15 December 2017 20:57

  BTW,



  I am using GTX 4.8 with GVH 2.9

  0
•

  Permanently deleted user

  15 December 2017 21:08

  Also, I am wondering if can have more than one command under "MapOnClickBehavior."(?)  I assume so, but am wondering if I can combine "InvokeMapTip" AND "Identify" as two commands under "MapOnClickBehavior" and even "MapOnFeatureClickBehavior."

  0
•

  Permanently deleted user

  22 December 2017 22:33

  Hi Michael,

  I don't believe this behaviour is possible via configuration of the json. This is because the Identify command requires a command parameter of Geometry type which you can not configure when configuring Map Behaviors.

  There is a note about this in the Html5 Viewer documentation here: https://docs.geocortex.com/essentials/gvh/2.10/admin-help/Default.htm#gvh/admin/modules/map-module.htm

  "You can add commands to a behavior if the command does not require a parameter, or if the type of the command's parameter matches the parameter of an existing command or the event associated with the behavior. To determine if the parameters are compatible, see the Geocortex SDK for HTML5. Note that private commands and events are not documented."



  One thing you could consider as a work-around is to make the Point Identify tool "sticky" so it stays active after performing a successful identify, as well as invoking the identifty tool on load through a start-up workflow. However, depending on the use cases accomplished by your viewer this may not work, considering activating another tool would de-activate the identify tool.

  Let me know if you have any other questions about this behaviour or any others



  Cory Purnell



  Latitude Geographics Quality Assurance Team
