How do I get the objectid of clicked element in results table?

Permanently deleted user

19 December 2017 20:03

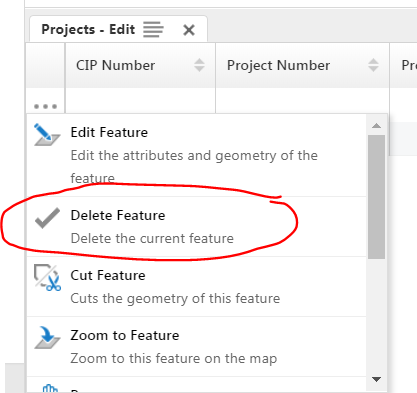

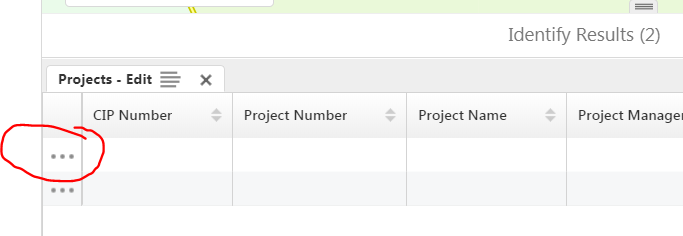

How can I get the objectID of the particular feature clicked on in a results list--specifically when launching a workflow from the feature actions in the results table.  My thinking is that I need to pass the objectid into my workflow so as to be able to work on that particular feature...maybe there is another method?





0

•

  Permanently deleted user

  20 December 2017 04:58

  Hi Michael,



  You can subscribe to this event "ResultsListFeatureClickedEvent" and get the selected object as first argument.



  Please let me know if you need any further clarifications.



  Regards,



  Mohammad Ashraf

  0
•

  Permanently deleted user

  20 December 2017 16:11

  Mohammad,



  Thanks for that reply.  I actually have no idea how to subscribe to an event.  I was hoping their was some activity that could give me the "clicked on" feature, but if I need to do custom code, I will need a whole lot more help.  Are there any examples you can pass my way?



  Michael

  0
•

  Permanently deleted user

  22 December 2017 12:51

  Hi Michael,



  You need to write a custom module and subscribe to "ResultsListFeatureClickedEvent" event as shown below:



  initialize(config: any): void {



              this._config = config;



              if (config) {



                  this.app.eventRegistry.event("ResultsListFeatureClickedEvent").subscribe(this, this.closedEvent);



              }



          }



  closedEvent(evt) {



      // do your stuff here



      // you can call a workflow here if you want to do any operation on the selected feature(s)



      //this.app.commandRegistry.command("RunWorkflowWithArguments").execute({



      //    "workflowId": "workflowIdHere", "inputArgumentNameHere": dataToBePassToWorkflow



      //});



  }



  If you want to know how to write a custom module and need sample, please refer to the HTML5 Viewer QuickStart folder (It contains a visual studio solution to write a custom module)



  Please let me know if you need any clarifications.



  Regards,



  Mohammad Ashraf

  0
