markup to graphic

Permanently deleted user

02 Maj 2019 20:25

Just doing a reality check on myself.



I am turning a "envelop" into a "markup" and using a "Cast to Geometry" to do so. That all works great.



I then am trying to tag the resulting Geometry onto a new graphic to inject into a feature service/SDE. It fails as the casted object continues to act like an "envelop" and has 2 coordinate. It's not truely a geometry from all the warnings...



So after hours of testing I am leaning more towards grabbing the "markup" that looks corect...but I am mentally struggling with what the heck is really a markup and how to I grab that to do anything with it. The Viewer Commands are falling a bit short on how to turn a markup into a geometry or graphic.



Any advice to get me back on track?

0

•

  Permanently deleted user

  02 Maj 2019 21:31

  OK Got it! Here are notes for the future folks:



  Markup is a drawing - drawings don't appear in the viewer but can be called as a graphic in a workflow using "Drawings".

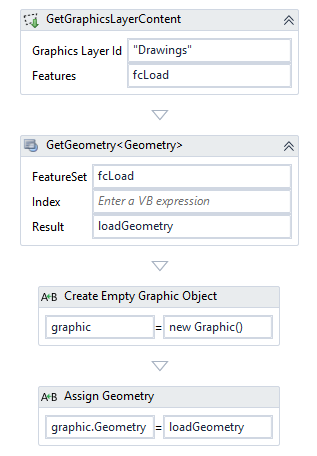

  Basic steps in picture below.



  Article here: https://support.geocortex.com/essentialsGSCForum?sub-nav=forum&main-nav=essentials&#!/feedtype=SINGLE_QUESTION_SEARCH_RESULT&id=906f2000000fxY4AAI











  0
