Message to user

Bryan Lynn

20 Juli 2021 19:57

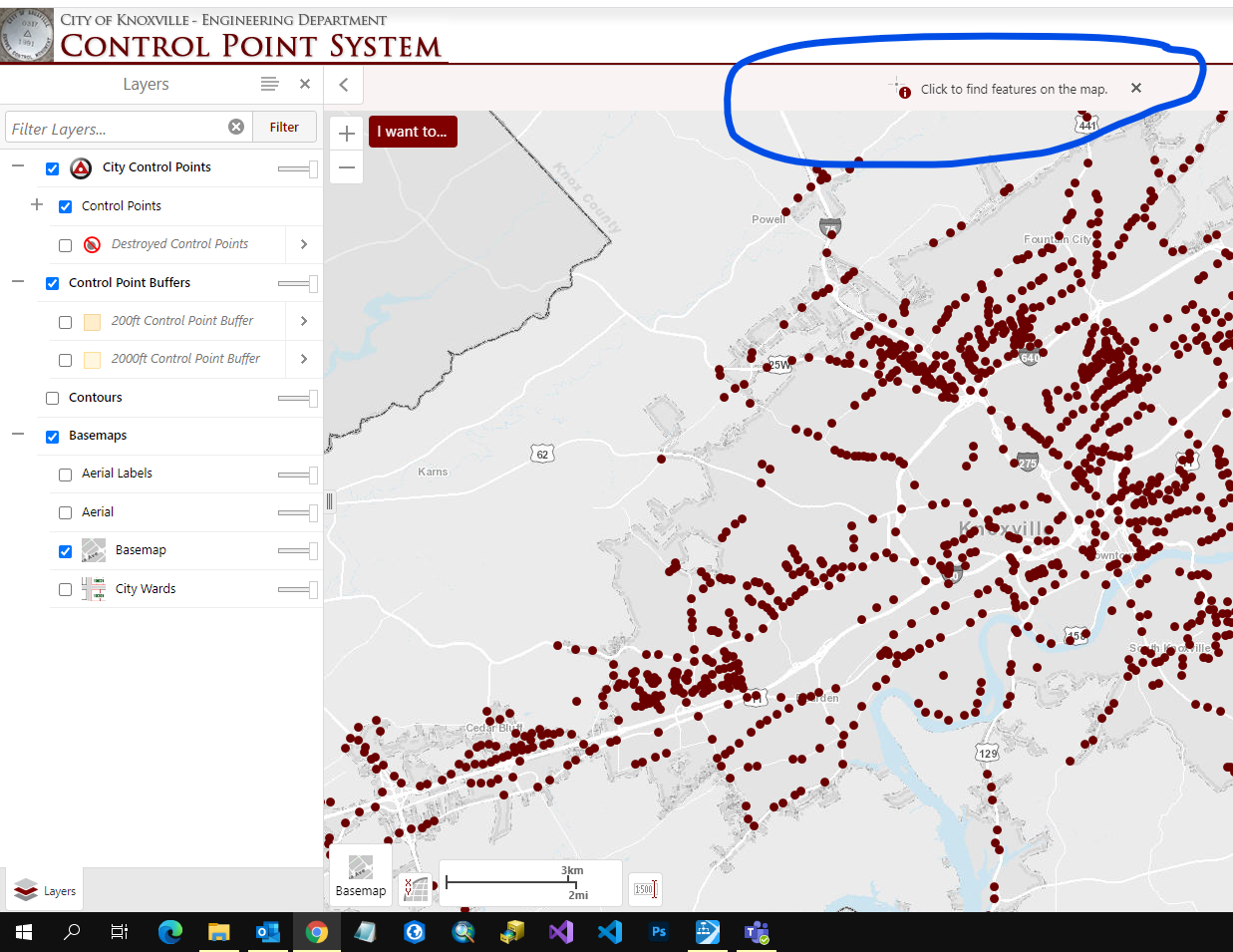

What is the little status window at the top of the map view in the HTML5 viewer called and how can you post a message to it through a workflow?

0

•

  Permanently deleted user

  21 Juli 2021 00:02

  Hi @Bryan Lynn? , it's called a notification and can be added using the DisplayNotification command (https://docs.geocortex.com/essentials/gvh/latest/commands-help/#/commands/Map%20Widget/DisplayNotification) in a Run Command activity.

  For Geocortex Workflow, you'd configure the Command Parameter input to look like something this:

  ={ text: "your message here", closeButton:{}, id:"WorkflowNotification" }

  If you need to dismiss the message later in the workflow, you'd use the RemoveNotification command, with the notification id as the command parameter (for the example above it'd be: WorkflowNotification)



  If you're using Essentials (xaml) workflows instead, let me know - you'd need an extra step to create the command parameter as a JObject or similar.

  0
•

  Bryan Lynn

  05 Augusti 2021 17:47

  Thanks for the answer. I am using an Essentials XAML workflow. The creation works but I can't get it to remove the notification. I tried using the following:



  To Display - Newtonsoft.Json.Linq.JObject.Parse("{text: 'Click to Create a New Offset Line', closeButton: {}, id: 'createOffsetNotification'}")



  To Remove - Newtonsoft.Json.Linq.JObject.Parse("{id: 'createOffsetNotification'}")



  Any suggestions would be much appreciated.

  0
