Location Note - Ability to move it once created

Brian Oevermann

4 août 2026 18:59

It's great that we can edit the text/font/etc a location note once it has been created, but sometimes we need to move it once we have the text showing on the map. Essentials markup tools were easy and intuitive to work with in this regard. Please allow for moving locations notes.

2

•

  Holger Frommer

  5 août 2026 07:16

  Hi Brian,

  We use an extra custom tool to achieve this:

  [
      {
          "name": "sketching.capture-geometry",
          "arguments": {
              "geometryType": [
                  "point",
                  "extent"
              ]
          }
      },
      {
          "name": "geometry.buffer",
          "arguments": {
              "bufferDistance": 10
          }
      },
      {
          "name": "map.get-markup",
          "arguments": {
              "collection": "vgs-map-notes"
          }
      },
      {
          "name": "sketching.edit-geometry",
          "arguments": {
              "options": {
                  "enableDelete": false,
                  "enableScaling": false,
                  "enableVertexEditing": false,
                  "enableRotation": false
              }
          }
      }
  ]



  Regards

  Holger

  1
•

  Brian Oevermann

  5 août 2026 15:01

  Holger,

  Thank you for sharing! I do hope VertiGIS makes this out-of-box functionality though. It just seems like the process of how customers work with markups/text wasn't fully researched. Remove and replace, after having move abilities in Geocortex, just falls short.

  0
•

  Amanda Frech

  17 août 2026 18:07

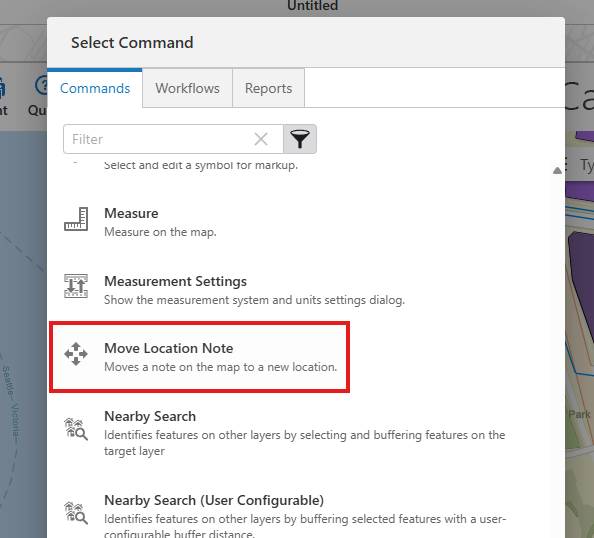

  There's an out-of-the-box option that runs a command chain similar to Holger's:



  I think it just ends up being a bit confusing that “edit” and “move” are 2 separate functions. Folks sometimes find one without finding the other.

  0
•

  Holger Frommer

  18 août 2026 04:14

  Thanks Amanda,

  We build our solution with VSWeb 5.36, I guess it wasn't available then. Nice it's out-of-the-box now.

  0
