Open map scale prompt from toolbar

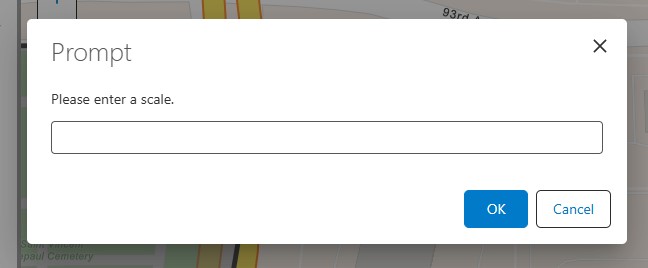

I'm wondering if it's possible to write a custom command to include on the toolbar that will open the enter a scale prompt from the scale input component. I think kind of buried in the scale input list, and it'd be easier for my users to have a button on the toolbar to click and then enter a custom scale. Thanks for any help!
-
Hi John Nerge .

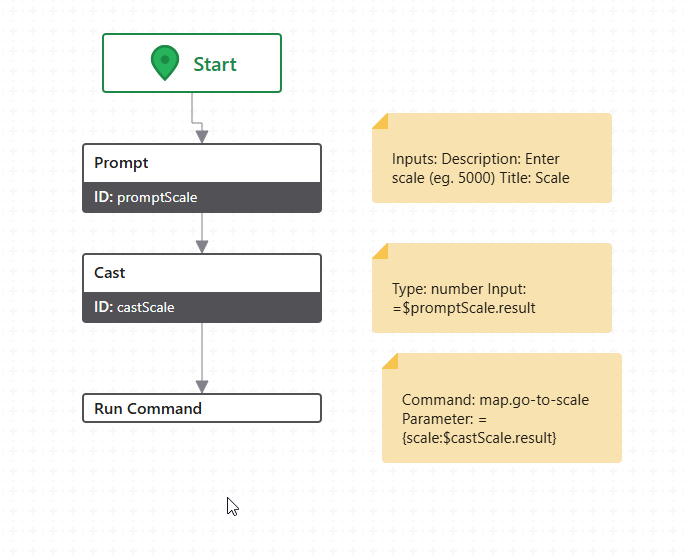

Have you tried mucking around with the Set Extent activity in Workflow. I had a crack at this a while back, and while a bit quirky, got it to work. Along the lines of…
Not sure how it goes with selecting scales in between basemap caches scales etc.. ?
2 -
That worked Gareth Finney, thank you so much! It works for non-basemap scales too, so our engineers can zoom to stuff like 1:1,200 where 1 inch = 100 feet, which is exactly what they need.
That was my first from-scratch workflow in Workflow 5 too, so also thank you for helping me build some confidence!
0 -
No probs. Glad it helped out. Enjoy the workflow journey - it's been a real eye-opener coming from Essentials workflow.
0
