Can Arcade expressions configured in an ArcGIS Online web map pop-up display in Geocortex Web map-tips?
I've tried configuring simple Arcade expressions as attribute expressions in the ArcGIS Online web map pop-up settings. This are displaying as expected in the web map.
For example - Round(Area($feature, 'square-kilometers'),2)
However when I use the same web map in Geocortex Web and select a polygon, the value for these expressions are "#INVALID". The custom attribute expression name and all other fields display fine - it's just the Arcade expressions that seems to cause an error.
Any possible cause for this or would I have to configure the expressions on the Geocortex Web side instead?
-
Hi James - just a note to say we've added a task to dig into this for you and figure out what is going one. We will let you know what we discover.
0 -
Hi James,
After a bit of investigation, it does look like an issue on our end. I filed a ticket for our developer's eyes.
Thank you for sharing your feedback.
Kind Regards,
Pairin
0 -
For those following this thread. All synchronous arcade expressions are working well in Geocortex Web now ... and we've just begun working on ways to allow asynchronous arcade expressions to work as well (should be completed in time for 5.12).
0 -
Are the Arcade expression the ArcGIS Online web map pop-up configuration synchronous or asynchronous?
0 -

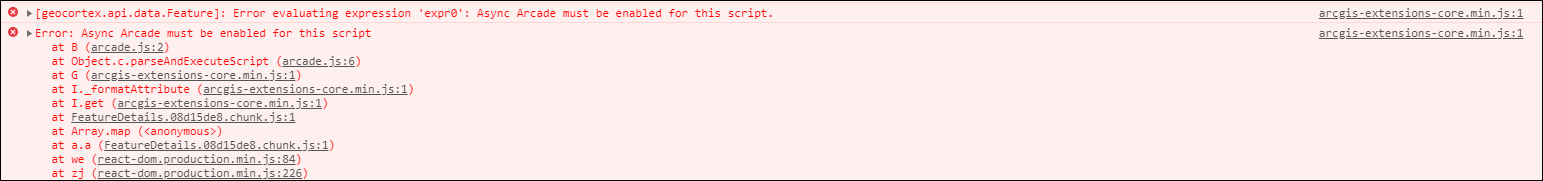

Here is the error I'm getting.0 -
Hi Frank,
That's likely an asynchronous Arcade you got there. Is it possible for you to share the webmap?
Cheers,
Pairin
0 -
Here you go. https://arcg.is/v0Kz4 Let me know if this doesn't work for you.
Thanks,
Frank
0 -
Hi Frank,
Thank you for sharing the webmap.
With the same layer as your screenshot (i.e. Districts), I cannot reproduce the issue. I'm using latest GXW 5.11.
However, I ran into #INVALID issue with Incorporated City layer on the 2nd time identify (issue didn't appear at 1st identify). I'll have our team to investigate on this.Kind Regards,
Pairin
0 -
There was a bug in 5.5 that caused this to happen that was resolved in 5.6
"Fix to our Arcade expression evaluator so that Arcade-derived values no longer show as #INVALID [38607]."
0 -
Yes, it started working for me as well after I closed out of the Web Designer and AGOL web map for the day and reopened everything the next day. Seems there was a disconnect between the AGOL web map and the designer if you make to many changes to the popup configuration. Just my experience.
A question about Arcade expression evaluation. District popup now contain and expression using the AGOL Arcade constant, TextFormatting.NewLine. We use the newline to create a "list". The newline is not being expressed in the Web Designer.
AGOL web map popup:

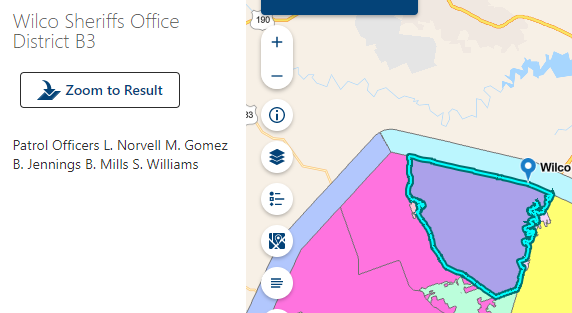

Web Designer:
Also, is there a way to create the "popup" or "map tip" the Web Designer?
Thanks,
Frank
0 -
One final note here - @Frank Martin? the 'flow' of making updates in your webmap and then getting caught because those changes aren't yet re-loaded or represented in the live preview in Web Designer is something that is in the works. In short we are going to have a quick way to 're-fetch' all map/scene data into the preview that will look something like this:
This then allows that rapid iteration of making a change in the webmap and then easily refreshing the preview to view it much more intuitive. This catches us sometimes too when we are tweaking pop-up config, or symbology and forget that Designer doesn't know the webmap has been updated.
0 -
Thanks, Cam. That will be a great help.
I have another issue with displaying AGOL web map pop-ups in Geocortex Web. I changed the pop-up configuration in the AGOL web map Pop-ups using the Custom attribute Display (see below), however the values for field tokens configured using this method aren't being displayed in the Web viewer. The literal field tokens are displayed.. :-(
AGOL:

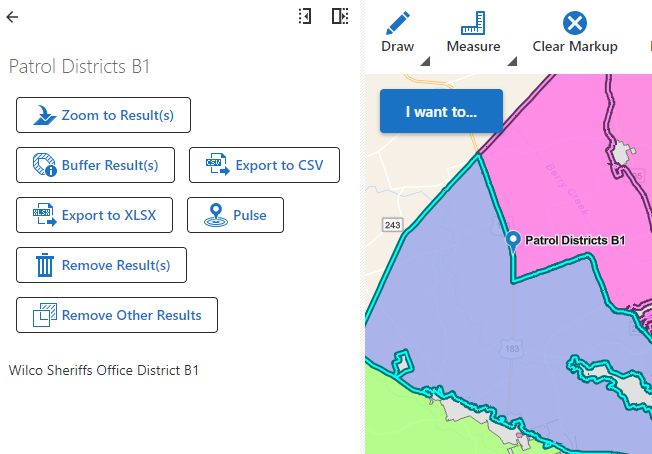

Geocortex Web:
I'm having trouble figuring out how to make a "list" view in the results of the Web
map.
Thanks,
Frank
0 -
Hi Frank,
The issue around TextFormatting.NewLine is fixed as part of the new support for Async Arcade. You can see the fix in the next 5.12 release.
The issue around Custom attribute Display/field tokens, I filed a ticket for our dev to take a look further [45110].
Kind Regards,
Pairin
0 -
HI Pairin,
Sounds great! Thanks for your help with this... I'm looking forward to the 5.12 release.
Thanks again,
Frank
0 -
Hi all,
I am having the same issue with the latest 5.11 release. I waited over night, but am still getting this error.
Is there a way to manually enable Async Arcade?
0 -
Sorry for the redundancy,
@Cam Barnard? and @Pairin Mason? , but I forgot to tag in the first message!
0 -
Hi Alex,
The support for Async Arcade in Web will be part of the next 5.12 release.
Kind Regards,
Pairin
0 -
@Cam Barnard? or @Pairin Mason?
Are there any plans to incorporate this in to Mobile/GO?
I know there may be an issue in an offline environment but just curious if there are plans while users are connected to display Arcade Expressions in Pop ups in Mobile.
Thank you!
Nelson Dobbs
0 -
@Nelson Dobbs? Good question. We've been regularly 'lobbying' Esri to expose the Arcade 'engine' as part of the JS API and the Runtime API. Based on the most recent road ahead JS presentation it looks like it is in the works for JS API. I haven't heard anything recently about the Runtime API. It is ultimately dependent on being able to 'evaluate' the Arcade expression and ideally we don't want to write our own code to do that :)
0 -
@Cam Barnard?
Awesome! Thank you for the update!
0 -
I think this was never released?
