Display measurements labels in rectangular shapes like GVH
Our GIS map apps users like the way the measurements labels displayed in GVH, e.g. in rectangular shapes. Can we request that VSW displays the labels in a similar way, which is much clearer to the end users?

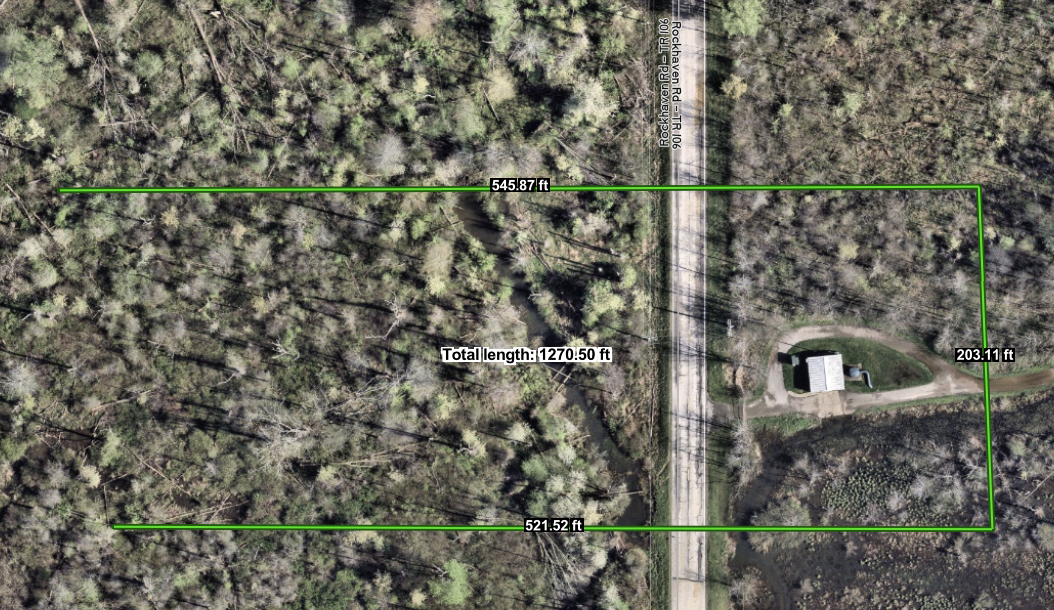

Measurement labels in VSW:
Measurement labels in GVH:
-
likewise our users love the way it was done in GVH
1 -
My users are making similar requests saying the VSW are difficult to read.
1 -
We'd like to see this update too.
1 -
For legibility I found that the measure tool font can be adjusted in the JSON file of the application. I bumped up the font size and halo size. This is by no means a convenient solution since you have to edit the JSON each time you publish the application. A way to edit this in the studio developer would be nice if the GVH displays cannot be implemented.

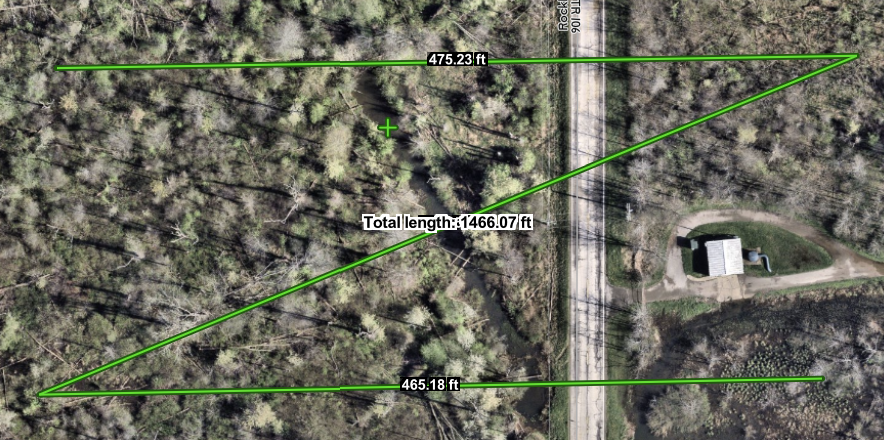

I also want to point out that the GVH had polyline totals at the end of the line instead of in the middle of an imaginary polygon which is easier to understand and prevents the following from happening:
The middle line length is obscured by the total length.

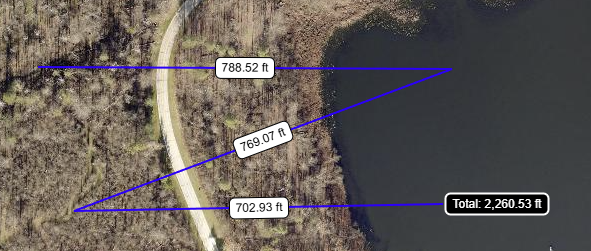

GVH:
