Change Open Legend Image

Permanently deleted user

8. Februar 2016 17:45

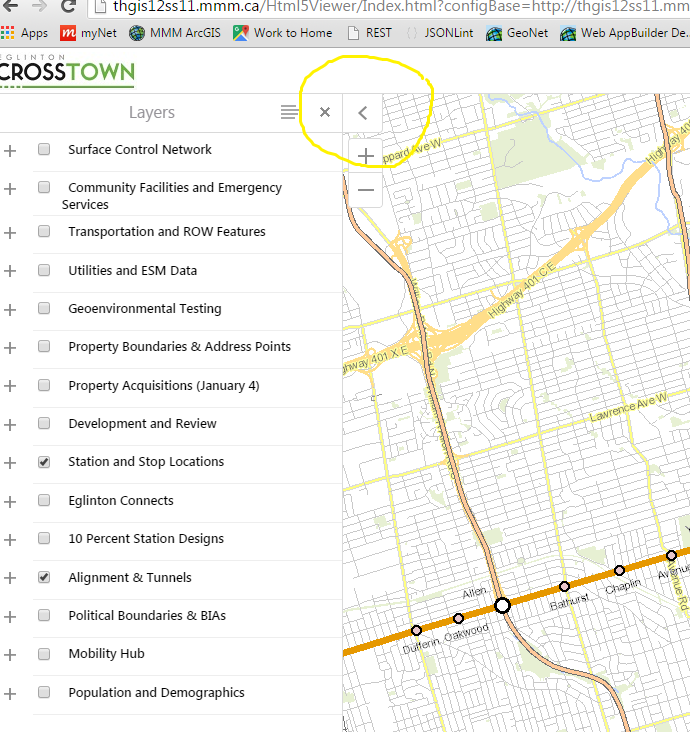

I'm trying to change the image that opens the Layer list so that some of our clients have an easier time finding it.



I want to repoint in the code instead of renaming the image, but am having a hard time finding where this actually resides in the json. any tips?



0

•

  Dan Giersz

  8. Februar 2016 18:09

  You could do this with CSS.



  .data-frame-button.tab-closed {



      background: #FFFFFF url("<path to image for closed data frame>") no-repeat center center;



  }



  .data-frame-button.tab-open {



      background: #FFFFFF url("<path to image for open data frame>") no-repeat center center;



  }





  0
•

  Permanently deleted user

  8. Februar 2016 19:26

  Hi Dan,



  Thank you, where would I put this, in the inetpub/wwwroot/HTML5Viewer/Resources/Styles/Desktop.css ?



  I don't see .data-frame-button-tab anywhere in the code currently....



  I'm new to css, thanks

  0
•

  Dan Giersz

  8. Februar 2016 19:51

  That snippet actually comes from the common.css file for the deployed viewer template.



  (You can right-click on anything in a web browser to see it's source HTML and CSS; 'Inspect' for Chrome and 'Inspect Element' for Firefox.)



  Changing anything in the inetpub/wwwroot/HTML5Viewer will affect every viewer using that template.



  If you want to change it for specific sites, you'll have to add it to the CSS files in Sites\<site name>\Viewers\<viewer name>\VirtualDirectory\Resources\Styles\Custom



  Anything in a site's custom CSS files will override the defaults.



  Changing the CSS can get tricky with these viewers, as you don't really know all the elements using a particular CSS style.

  0
