How to add a color swatch/color picker in Display Form

Permanently deleted user

4. Mai 2018 13:55

I have a workflow that will query a parcel dataset by an attribute value (NBH) and my goal is to symbolize the result set by unique value (IMP_TYPE).  I have the majority of the workflow copmlete in that it will select the specific neighborhood (NBH), get the unique improvement types (IMP_TYPE) within that neighborhood, and will loop through each result looking at the IMP_TYPE field.  I want to be able to symbolize the graphics layer (featureSet) on this unique value and assign a specific color to each unique value, then set the renderer and update the graphics layer.  I then want to be able to display in a form the unique values and their associated assigned color.  For example, value R1 = Red, R2 = Yellow, etc...  Is there a way to show this in a display form like the image below?  Idealy I'd like the swatch to be a color picker but would settle for just the color swatch.  Any thoughts or help would be greatly appreciated.



0

•

  Berend Veldkamp

  4. Mai 2018 14:58

  Here's something that just came to mind. It will only work if the number of colors is limited.



  Add a combobox to the displayform, and add the colors you want to it. Then, add this to the custom styles file (Resources\Styles\Custom\DEVICE.css) option:nth-child(1) { background-color: red; } option:nth-child(2) { background-color: green; } option:nth-child(3) { background-color: blue; }



  You will need to make the selectors a bit more specific, this example will work for any combobox/listbox on the page, maybe you could use the id of the SELECT tag, e.g. #formitem-avwfX2rt > option:nth-child(1) but I'm not sure if that's a static value.

  0
•

  Zack Robison

  7. Mai 2018 18:19

  Clever move, Berend.  I'd like to add that you can use hexadecimal representations here in addition to the css named colors (https://www.w3schools.com/cssref/css_colors.asp) ie: option:nth-child(0) { background-color: #7D64C8; }





  0
•

  Permanently deleted user

  8. Mai 2018 13:20

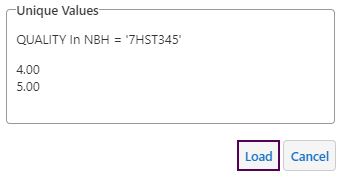

  So, if I understand you correctly, the entire 'row' of the combobox/listbox will be the color specified in the css file?  I suppose that would work but this would just be for visual purposes only, kind of like a legend.  I'm currently adding the unique values to a Markdown item in the form (image below).  Is there any way to add a color swatch next to the line item (next to 4.00 and 5.00)?









  0
•

  Berend Veldkamp

  15. Mai 2018 07:03

  I haven't found a way to use colors in a markdown item, but I do know that the Description for a Group item recognizes most html tags. You could for instance use a table where the background color for the first column (TD) is set.

  0
•

  Permanently deleted user

  15. Mai 2018 14:52

  Hey Berend,



  Thanks for the input, I'll give that a try.

  0
