how to use SearchExtent within Geocoding Service parameters?

Brian Bieber

13. Dezember 2018 14:43

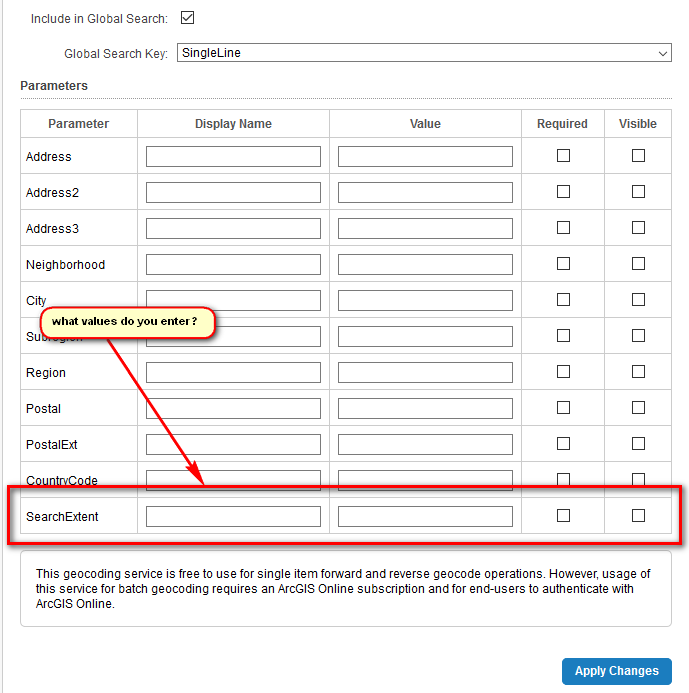

I would like limit the forward geocoding to a specific extent.  I couldn't seem to find any documentation on how to set/use the SearchExtent parameter.  Has anyone used SearchExtent successfully?



The following link shows how the Esri javascript api Search Tool can be limited to a certain extent.  I've done this successfully in other applications.



https://community.esri.com/thread/158365



0

•

  Permanently deleted user

  18. Januar 2019 01:09

  Hi Brian,



  It's been a while since I've tried this, but I think you can supply an extent as two pairs of lat/long coordinates.



  See: https://developers.arcgis.com/rest/geocode/api-reference/geocoding-find-address-candidates.htm#ESRI_SECTION1_E7214BD3ADA34C50A2B88C08F253DF41



  You may also be able to use a JSON envelope with a spatial reference, as documented by Esri.



  Regards,



  -Malcolm

  0
•

  Brian Bieber

  18. Januar 2019 14:10

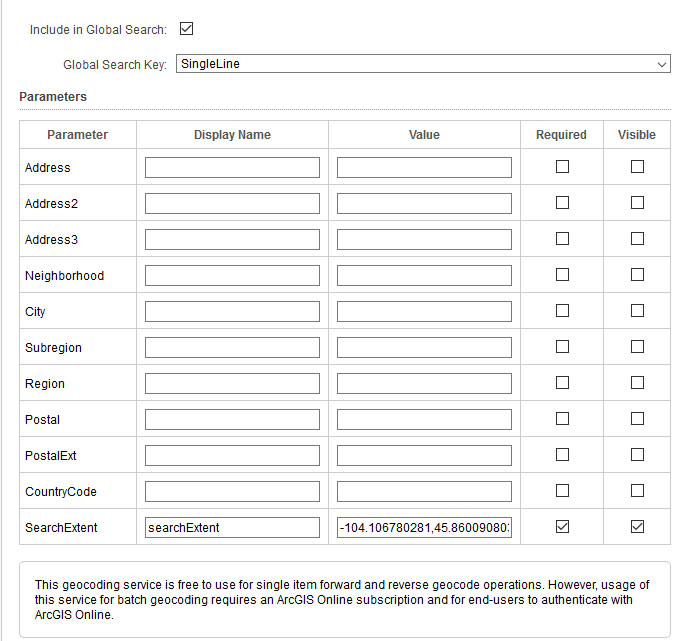

  I've tried both scenarios, lat/long pairs and the json envelope but the query to the geocoder doesn't include the searchExtent parameter.



  The resulting url from Geocortex is https://geocode.arcgis.com/arcgis/rest/services/World/GeocodeServer/findAddressCandidates?SingleLine=bismarck&f=json&outSR={"wkid":102100}



  searchExtent



  {xmin:-104.106780281,ymin:45.860090803,xmax:-96.476341624,ymax:49.065308176,spatialReference:{wkid: 4326}}



  -104.106780281,45.860090803,-96.476341624,49.065308176









  0
•

  Permanently deleted user

  4. März 2019 12:53

  Hi, did you ever get this working?

  0
•

  Permanently deleted user

  21. Mai 2019 05:06

  Hi Brian,



  I noticed one thing, If we select “Global Search Key” as “SingleLine” then Geocortex not considering the parameters at all.



  Please change the Key to “Address” and define your parameters and the geocoder URL request framing the parameter values what we defined.



  It worked for me.





  0
